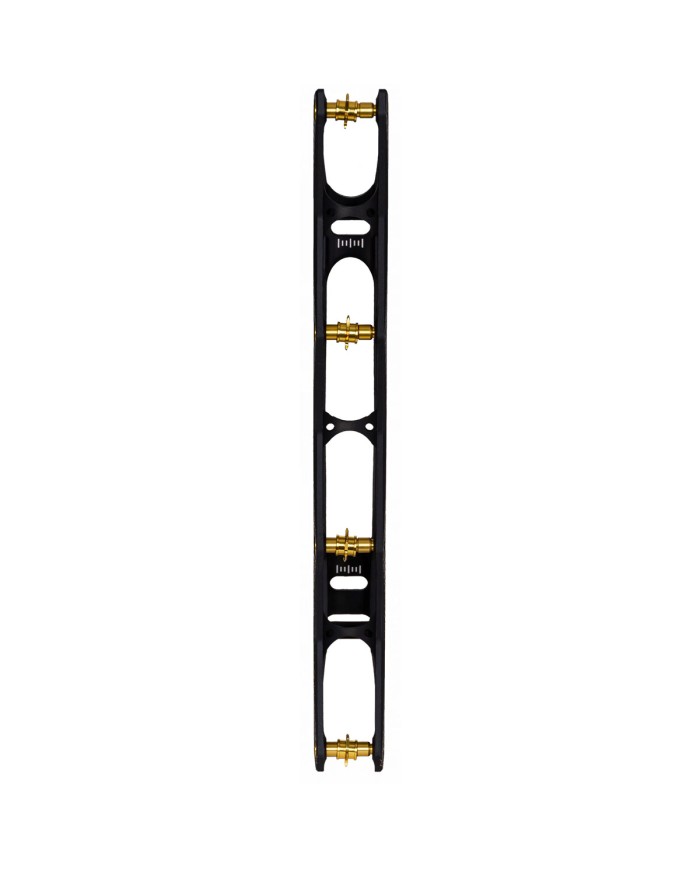

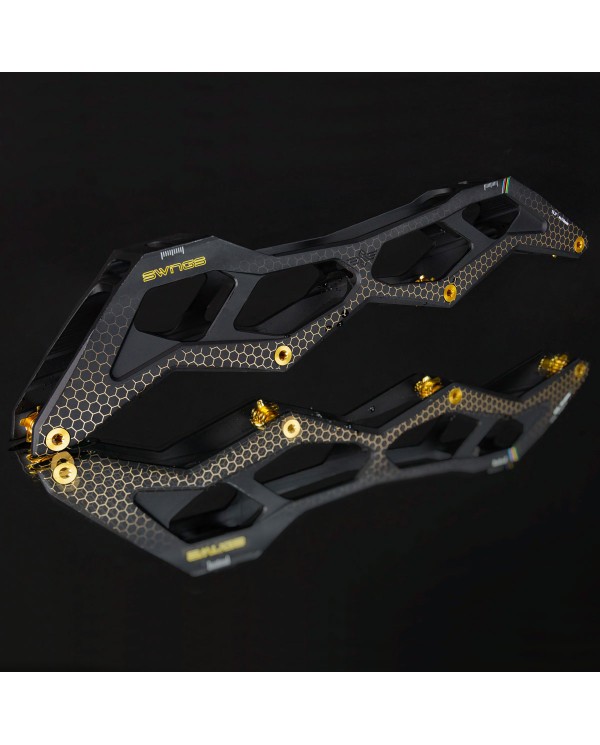

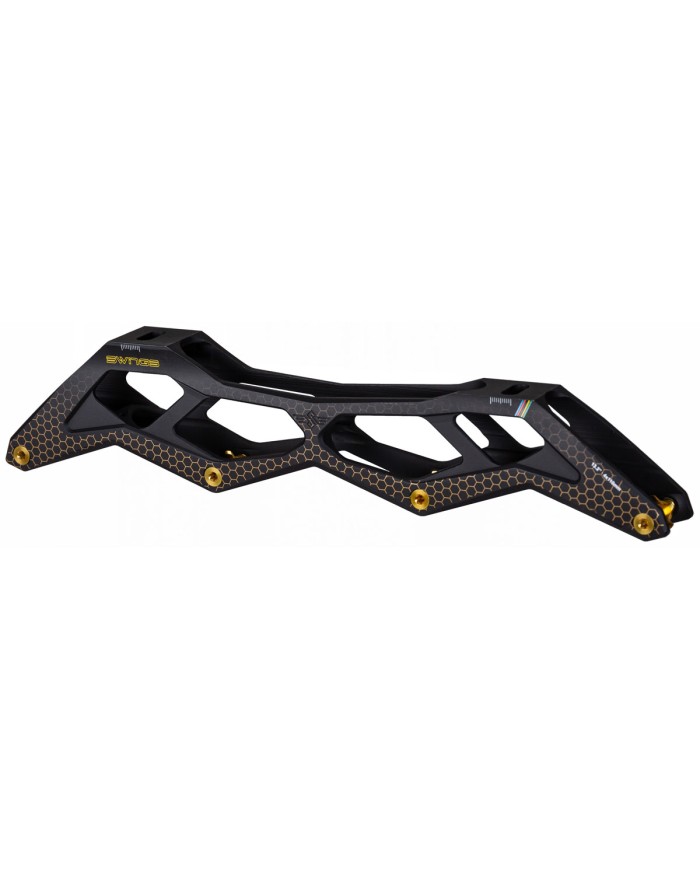

Swings MG Frame 4x110 – Magnesium Speed Skating Frame 335 mm
The Swings MG Frame 4x110 is a high-performance inline racing frame designed for speed skaters who demand maximum efficiency, stiffness, low weight and precise power transfer.
Manufactured from AZ31B magnesium, extruded and precision-machined using CNC technology, this frame is engineered specifically around a 4x110 mm wheel setup.
At just 166 g per frame and with a length of 335 mm / 13.2", the MG Frame combines an extremely low weight with the rigidity required for demanding racing and high-level training.
A competition-oriented frame for skaters looking to extract every possible advantage from their setup.
AZ31B Magnesium – Maximum stiffness with minimum weight
The use of AZ31B magnesium is one of the key features of the Swings MG Frame.
The material is combined with an extruded construction and precision CNC machining, allowing the frame to be optimized structurally while keeping unnecessary weight to a minimum.
The result is an impressive 166 g per frame, exceptionally light for a 4x110 racing frame.
Reducing frame weight helps reduce the mass that the skater has to move and accelerate with every stride, an important advantage during both racing and demanding training sessions.
At the same time, the frame has been engineered around high structural stiffness, helping transfer the skater's power efficiently from the boot to the wheels.
166 grams of magnesium engineered for racing.
4x110 mm Speed Skating Setup
The MG Frame is specifically designed for:
4 x 110 mm wheels
The 110 mm wheel configuration provides excellent rolling efficiency and helps maintain speed and momentum, making it one of the preferred setups for high-level Speed Skating and inline racing.
The frame geometry has been developed around this wheel diameter to provide an effective balance between stability, speed and edge-to-edge response.
335 mm / 13.2" Racing Platform
With a total length of 335 mm / 13.2 inches, the frame is optimized for a 4x110 mm setup.
This length provides a stable platform at high speed while maintaining the responsiveness required for efficient skating technique.
The MG Frame is designed to balance longitudinal stability with quick edge transitions, helping the skater maintain an efficient and consistent stride.
Efficient Power Transfer
In a racing frame, stiffness is not simply a structural specification. It directly influences how efficiently the skater's power reaches the wheels.
The Swings MG Frame creates a solid connection between boot, frame and wheels, helping minimize unwanted deformation and providing a direct skating response.
Its wider mounting deck increases the contact area with the boot, while the direct flat side walls are designed to support efficient push mechanics.
The objective is simple: convert as much of the skater's energy as possible into forward speed.
Swings Speed CNC Construction
The MG Frame 4x110 belongs to the Swings Speed Frames family, developed around a clear philosophy: maximum stiffness combined with extremely low weight.
The frame is produced through extrusion and precision CNC machining, with carefully engineered surfaces and geometries designed to optimize structural performance.
Its low-profile construction also contributes to fast edge-to-edge transitions and a direct, responsive skating feel.
Rigidity where it matters. Weight where it doesn't.
Low Profile & Fast Edge-to-Edge Response
The low-profile design provides a direct and reactive skating sensation.
In Speed Skating, fast transitions between edges are essential for maintaining an efficient stride and maximizing every push.
The MG Frame is engineered to provide rapid response without sacrificing the stability required when skating at high speeds.
The result is a racing platform combining:
Stability + stiffness + low weight + responsiveness.
Swings Speed AL 7075 Axles
The frame includes individual AL 7075 aluminum axles, designed to complement the lightweight construction of the frame.
The axles feature a CNC-machined central section to reduce weight while maintaining the strength required for demanding racing use.
Technical specifications
- Material: AL 7075
- Diameter: 8 mm
- Length: 35 mm
- System: Single Axle
- Head: Torx T25
The premium gold anodized finish completes the characteristic Swings performance aesthetic.
Swings Spacers & Included Accessories
Weight optimization continues through the included components.
The Swings AL SL spacers are precision-machined from 7075 aluminum, using a CNC design focused on reducing unnecessary mass.
With approximately 1 g per spacer, they help maintain a lightweight overall wheel and bearing assembly.
Included
- AL SL axles
- AL SL spacers
- 4 x 14 mm mounting screws
- Torx T25 tool
A 4x110 Frame for Demanding Speed Skaters
The Swings MG Frame 4x110 is designed for skaters looking for more than a conventional aluminum racing frame.
Its combination of AZ31B magnesium, CNC machining, 335 mm length, 4x110 mm configuration and just 166 g makes it a serious high-performance option for Speed Skating.
Ideal for inline racing, competition, high-level training and performance-focused skaters looking to optimize every detail of their setup.
When the goal is better efficiency and faster times, reducing weight without sacrificing stiffness can make a real difference.
Technical Specifications
- Brand: Swings
- Model: MG Frame 4x110
- Type: Speed Skating / Inline Racing Frame
- Material: AZ31B Magnesium
- Construction: Extruded + CNC precision machined
- Length: 335 mm / 13.2"
- Wheel setup: 4 x 110 mm
- Weight: 166 g per frame
- Profile: Low profile
- Construction: High stiffness / lightweight
- Axles: AL 7075
- Axle diameter: 8 mm
- Axle length: 35 mm
- Axle head: Torx T25
- Spacers: AL SL
- Mounting screws: 4 x 14 mm
- Tool: Torx T25
- Use: Speed Skating / Inline Racing / Competition / Advanced Training
Take Your 4x110 Setup to the Next Level
If you're looking for a 4x110 Speed Skating frame, the Swings MG Frame combines some of the most important characteristics of a competition setup: low weight, high stiffness, CNC precision, low profile and efficient power transfer.
At just 166 grams, combined with a 335 mm length and four 110 mm wheels, it is an outstanding choice for skaters building a serious high-performance racing setup.
It's not simply a lightweight frame. It's a frame engineered around performance.
